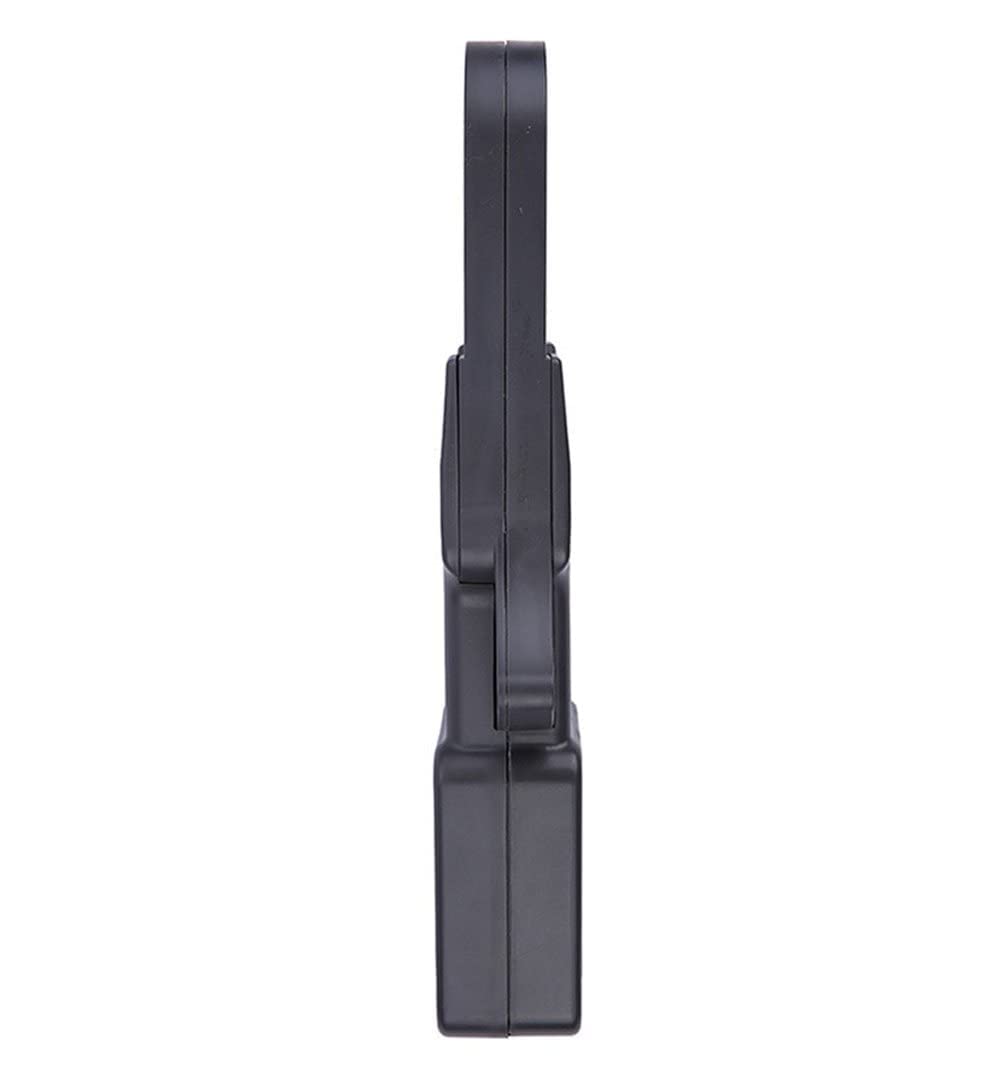

Large Caliber Leakage Current Meter Tester with AC Current Range 0.00mA to 1200A

Shipping Policy : Battery Not Included During the Shipping Technical Specifications * Function: AC leakage current, current, three-phase AC voltage test * Jaw Size: 80mmx80mm (can clamp φ80mm wire, or 96mmx4mm flat ground) * Display size: 43mmx29mm * Current range: AC 0.00mA ~ 1200A; AC Voltage range: 0.00V ~ 600V * Current resolution: 0.01mA; Voltage Resolution: 0.01v * Accuracy(23 °C ± 3 °C, 70% RH or less, the wire in the jaw center): 0.00mA ~ 300A:± 1.5% ± 3dgt; 300A ~ 1200A:± 2% ± 3dgt; 0.00V ~ 600V,± 1.5% ± 3dgt * Data memory: 200 sets * Automatic Shutdown 15 minutes after the boot * Power consumption: No backlight: 25mA; backlight: 50mA * Working Temperature and Humidity 0℃~40℃; below 80%rh * Storage Temperature and Humidity -10℃~60℃; below 70%rh * Process Type Clamp CT, Integral Approach * Frequency 50Hz, 60Hz Automatic identification * Peak Maintaining Peak value capture hold function, press HOLD without Release to display peak value * Overflow display Range overflow function: "OL" symbol display * Shifting Automatic Shift * Line voltage Below AC 600V * Measure time: 0.5 seconds/time * Battery Detection When battery voltage is lower than 5.2V, low battery symbol will shown to remind battery replacement. * Insulation Strength AC2kV/rms (between core and box) * Safety Provisions IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) * Weight: 1000g * Power Supply: 9V（Battery not included in the package） * Clamp meter size: Lx W x T: 275mm×145mm×40mm * Standard Accessories: Clamp meter, test line: 4 (1 each for yellow, green, red, and black), RS232 communication cable, software CD, instrument box, operation manual

• ◆ Large Caliper Clamp Leakage Current Meter for AC Current and Leakage Current Measurement up to 600V, Range: 0.00mA~1200A, Three-way AC Voltage Measurement, Range: 0.00V~600V, Caliber Size 80mm x 80mm,
• ◆ Current resolution: 0.01mA; Voltage Resolution: 0.01v; Accuracy(23 °C ± 3 °C, 70% RH or less, the wire in the jaw center): 0.00mA ~ 300A:± 1.5% ± 3dgt; 300A ~ 1200A:± 2% ± 3dgt; 0.00V ~ 600V,± 1.5% ± 3dgt
• ◆ Peak Maintaining Peak value capture hold function, press HOLD without Release to display peak value; Frequency 50Hz, 60Hz Automatic identification;
• ◆ The core is made of magnetic shielding material, which has strong anti-interference ability and ensures the accuracy and stability of the measurement. The meter measures current in a non-contact manner. The operation is safe, simple, and has a backlight function. Measurements in dark places are also clearly visible.
• ◆ Instrument has data retention, data storage and other functions, can save 200 sets of data, the instrument through the RS232 interface with the computer, the saved data can be uploaded to the computer, easy to read, analyze, save and so on.
