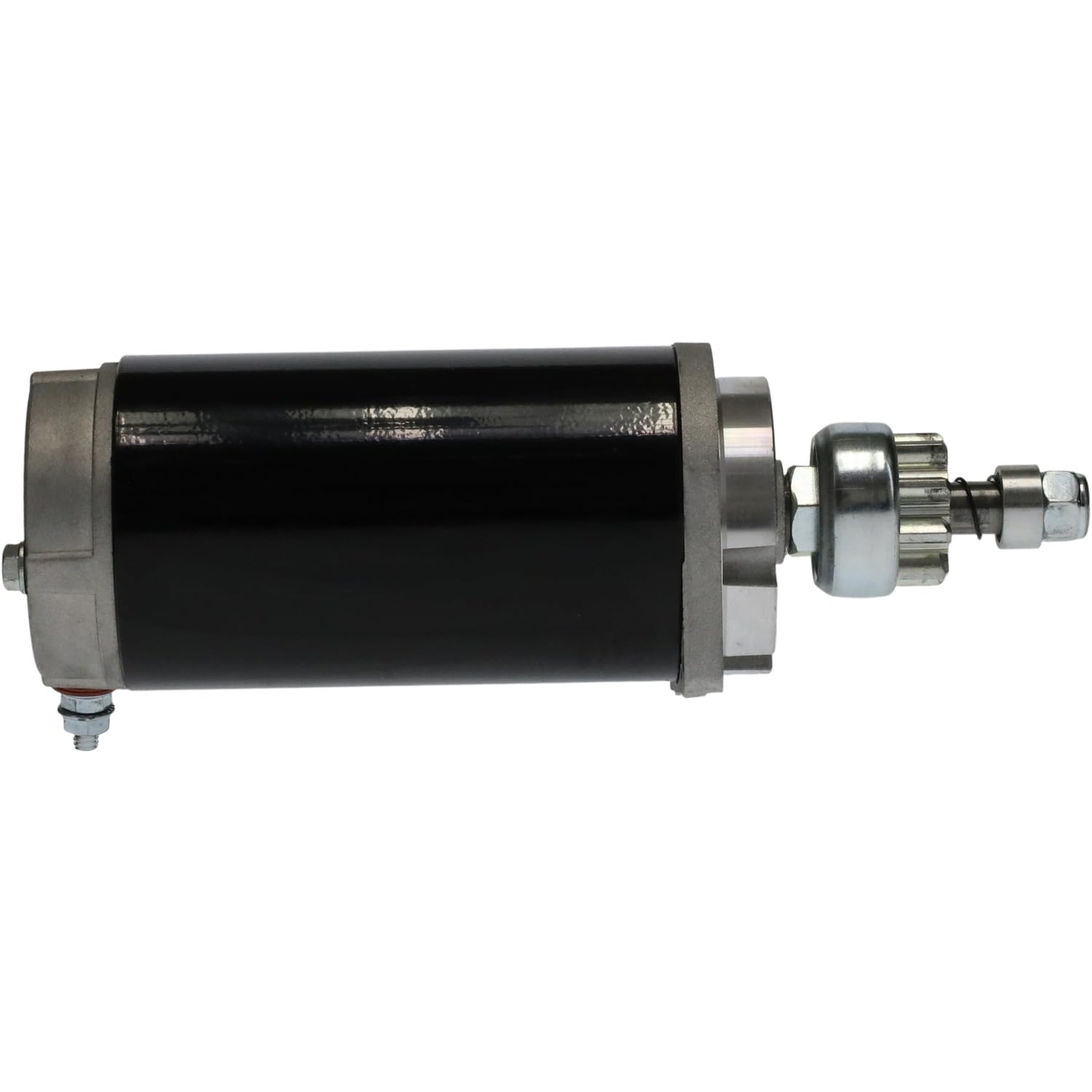

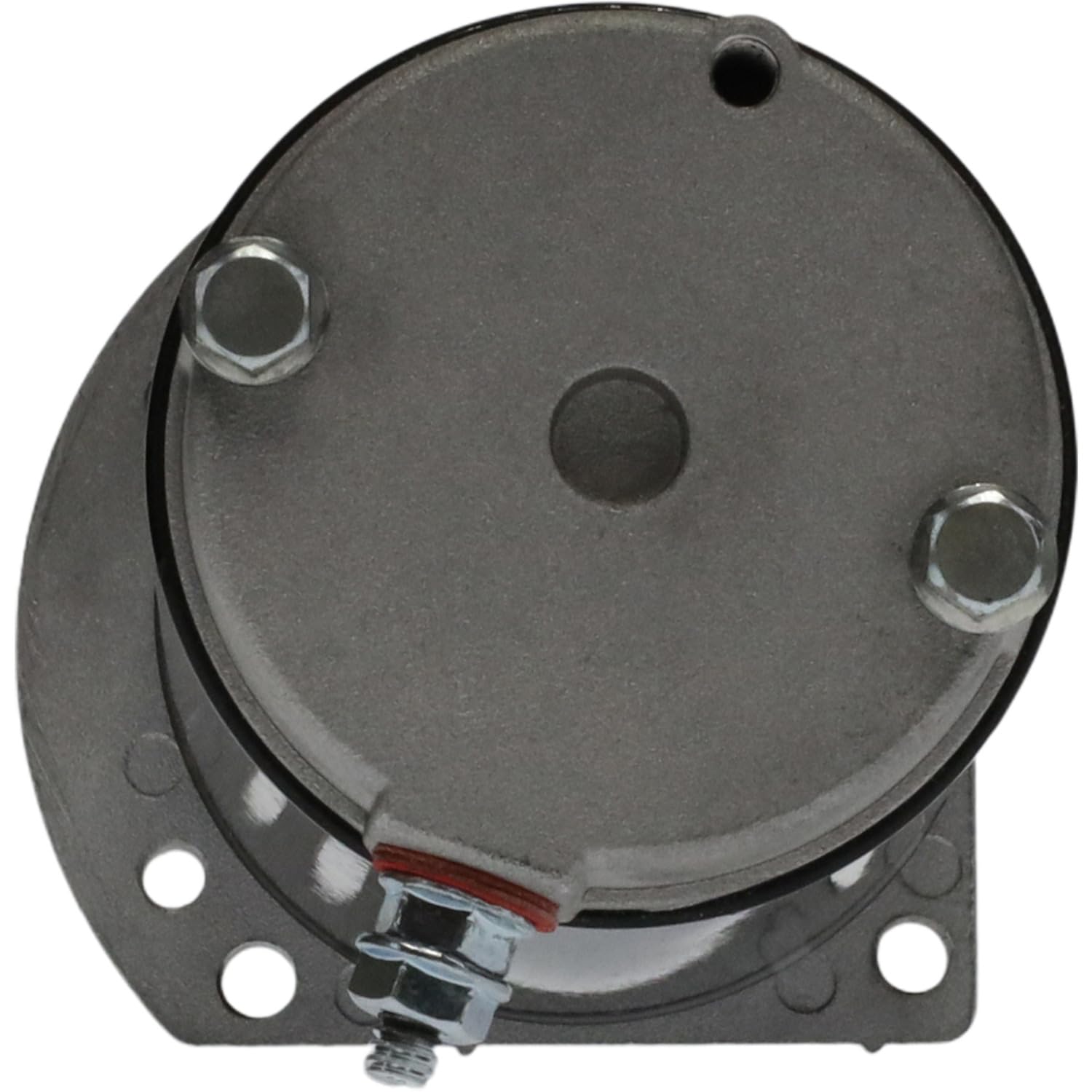

RAREELECTRICAL 9 Tooth Starter Compatible with John Deere 400 Lawn Tractor Am37725 Am34753 Kohler K-482 K-532 K-582 48-098-02 48-098-04 A277214 12V Pmdd CCW Bobcat 520 530 540

Kohler 48-098-02 / 45-098-04 Starter Motor - K-482, K-532, K-582 Air-Cooled Twin Engines OEM PART NUMBERS: Kohler: 48-098-02, 48-098-04, 48-098-04-S, 45-098-04, 45-098-05 Kohler: 41-098-05, 48-098-01, 48-098-05, A277214, A277599 John Deere: AM34753, AM37725 Bobcat: 6512287 SPECIFICATIONS: Type: PMDD Starter Motor Voltage: 12V DC Rotation: CCW Teeth: 9 Gear OD: 36.5mm (1.437") Field Case: 129.2mm (5.07") Length Mounting: 3x 5/16-18 Threaded + 1x 6.6mm Unthreaded Weight: 7.39 lbs (3.36 kg) APPLICATIONS: Kohler K-482 (18HP Twin Cylinder Air-Cooled) Kohler K-532 (20HP Twin Cylinder Air-Cooled) Kohler K-582 (23HP Twin Cylinder Air-Cooled) Kohler Command PRO CS4, CS6 (Spec 9615xx, 9715xx) John Deere 400 Lawn Tractor - Kohler 19.9HP - 1975-1982 Bobcat 520 Skid Steer - 1976-1977 (K-582S) Bobcat 530 Skid Steer - 1977-1981 (K-582S) Bobcat 540 Skid Steer - 1981-1986 (K-582S) ENGINE DETAILS: K-Series: Opposed Twin, 4-Cycle, Horizontal Shaft, Cast Iron Cylinder Sleeves ⚠️ Verify OEM part number from your original unit before ordering.

• Compatible with BOBCASE, JOHN DEERE, KOHLER. Please verify your OEM part number from your original unit to help ensure fitment.
• Replaces: Oem Part Numbers: / Kohler: 48-098-02, 48-098-04, 48-098-04-S / Kohler: 45-098-04, 45-098-05 / Kohler: 41-098-05, 48-098-01, 48-098-05 / Kohler: A277214, A277599 / John Deere: Am34753 / John Deere: Am37725 / Bobcat: 6512287 / Specifications: / Type: Pmdd Starter Motor / Voltage: 12V / Rotation: Ccw / Drive Teeth: 9 / Pinion Od: 36.5Mm (1.437 Inches) / Case Length: 129.2Mm (5.07 Inches) / Mounting Holes: 3X Threaded 5/16-18, 1X Unthreaded
• Applications: Complete Application Listing: / Kohler K-Series Twin Cylinder Air-Cooled Engines: / K-482 - 18Hp - 48 Cu.In. (782Cc) - Bore: 3.25" Stroke: 2.87" / K-532 - 20Hp - 53 Cu.In. (868Cc) - Bore: 3.37" Stroke: 3.0" / K-582 - 23Hp - 58 Cu.In. (950Cc) - Bore: 3.5" Stroke: 3.0" / All Models: Opposed Twin, 4-Cycle, Horizontal Shaft, Cast Iron Sleeves / Kohler Command Pro Cs Series: / Cs4 - 4Hp Single Cylinder Ohv Horizontal Shaft / Cs6 - 6Hp Single Cylinder Ohv
• Applications: Cylinder Ohv Horizontal Shaft / Specifications: 9615Xx And 9715Xx Series Only / / John Deere Applications: / John Deere 400 Lawn & Garden Tractor / Engine: Kohler Twin Rated At 19.9Hp / Production Years: 1975 Through 1982 / Hydrostatic Transmission / Oem Starter Part: Am34753, Am37725 / / Bobcat Skid Steer Loader Applications: / Bobcat 520 - Kohler K-582S Gasoline - 1976, 1977 / Bobcat 530 - Kohler K-582S Gasoline - 1977, 1978, 1979, 1980,...
• Starter - Voltage: 12V Rotation: Counterclockwise Teeth On Drive / Splines: 9 Country Of Origin: TW Source: Aftermarket
