RC Remote 3 Channel Light Cycler/Sequencer/System Controllable by Remote Compatible AC Voltage 100V-240V 50/60HZ. Bonus Beacon Mode
Product details
| Management number | 220715843 | Release Date | 2026/05/03 | List Price | $20.00 | Model Number | 220715843 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

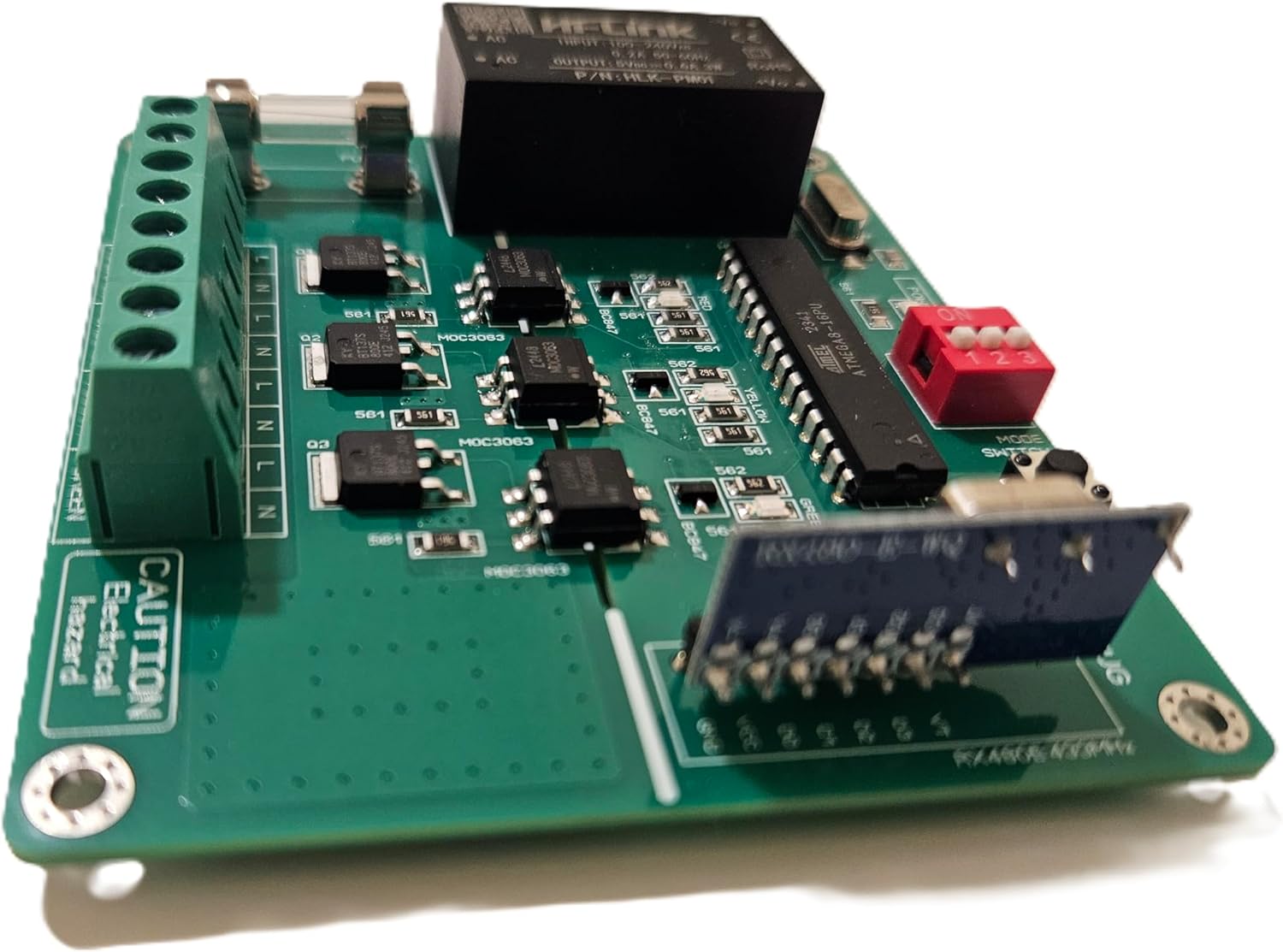

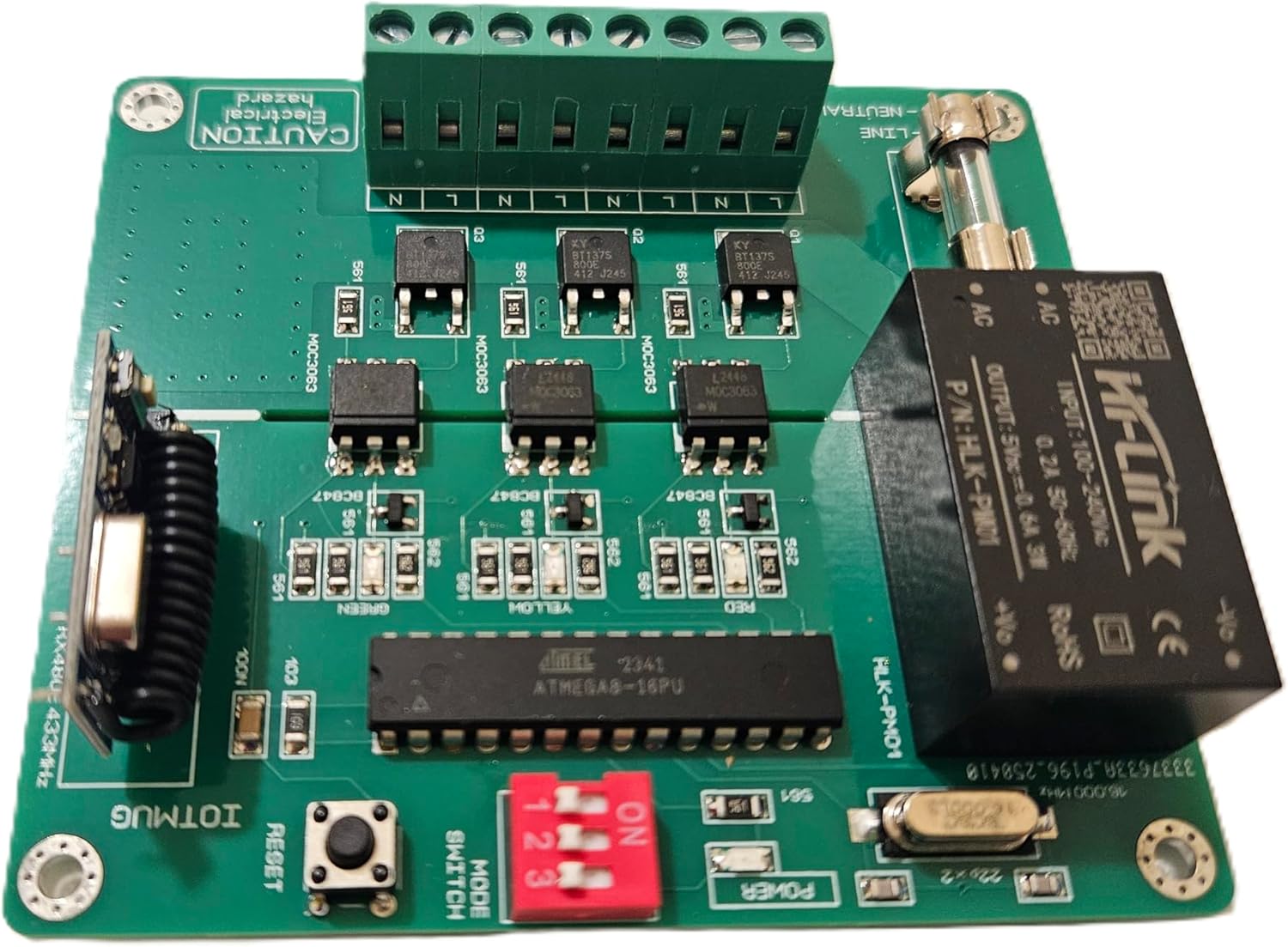

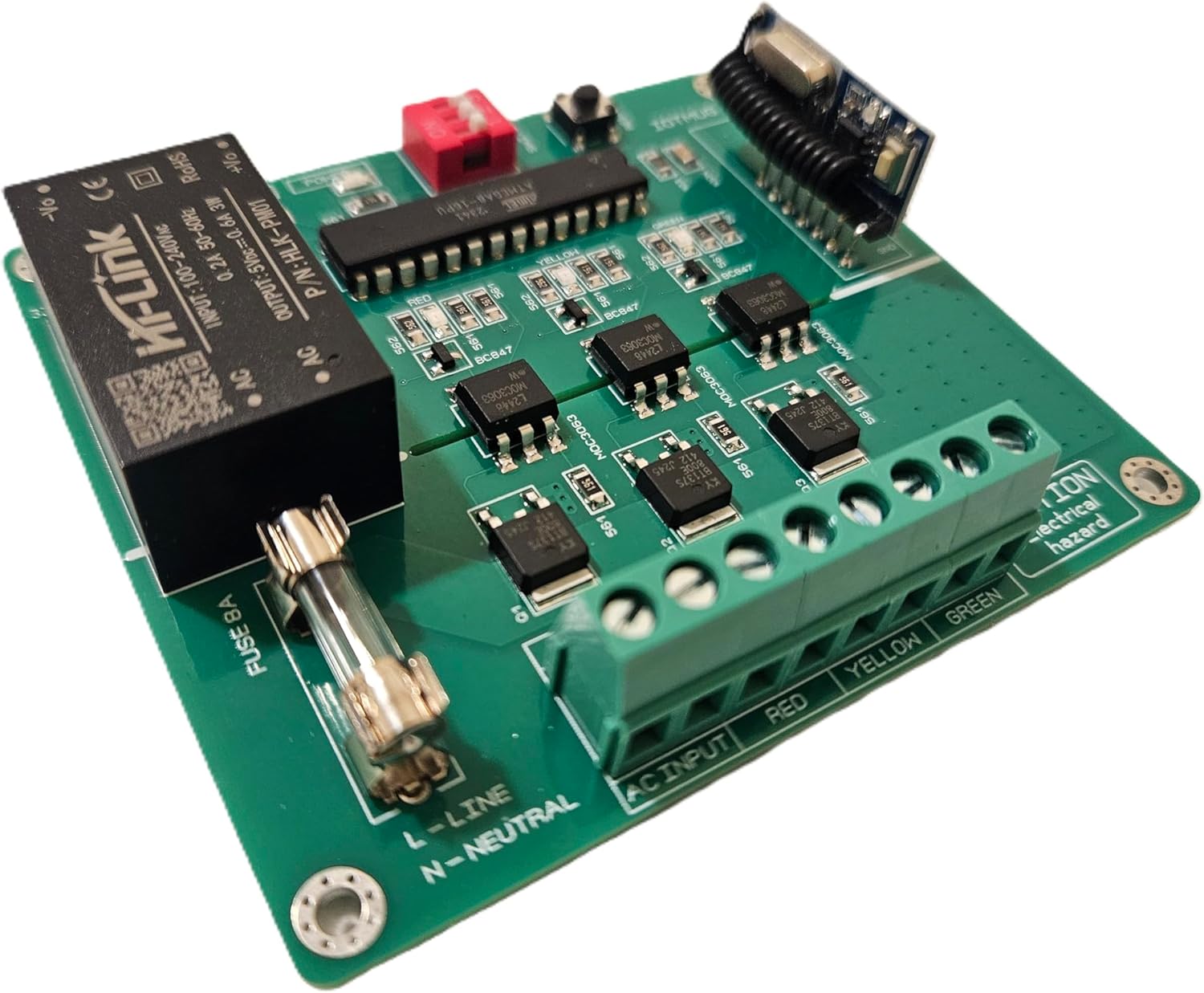

PCB board dimension – 80mm x 90mm, height 30mm, color green PCB Board Material - 1.6 mm FR-4, with solder mask & silk screen Input and Output Connectors - 14-26AWG, 250VAC @ 16A screw terminals Safety fuse - 8A Universal input voltage range 100…240VAC / 50…60HZ, 6W maximum per module Super-fast turn on and turn off, <50ms. Operating temperature (C degrees) -40 … +70 Button Long Range Remote Transmitter [ABCD Key FOB]: (it might come with antenna) Battery: 1x 12VDC Lithium 23A (10 yr. shelf life, 2yr. w/ daily use) (might not be included) Working current: ≤12mA Operating frequency: 433MHz Transmit power: ≥ 10mW. Launch distance: 150 meters (open space) Product Size: 92 x 40 x 15mm Working chip: 1527 With LED working status indication Made of high-quality ABS flame retardant material, safe and reliable. Operated load voltage type: AC Operated output load : 650Watt per channel It has 5 auto mode in different time/speed options It has 3 manual options in different speed options. Bonus it has pedestrian options via remote controller.Battery: 1x 12VDC Lithium 23A (10 yr. shelf life, 2yr. w/ daily use) Remote Controller might me with Antenna or without Antenna. We will send it depends on our stock, Package Includes 1 Remote Controller 1 Light Controller with battery.
- TEACHING MODE - Duration Control Via Remote . Increase and Decrease Light Duration Via Remote. Complete Tunr Off/ On Option Via Remote
- Super-fast turn on and turn off, < 50ms. RC Remote Controller 433Mhz Radio Frequency, Light Controller.
- Board Needs AC volatge to operate. It can control AC powered powered Lights. Power source can be AC Voltage 100V-240V 50/60HZ. 50…60HZ. Lights can be 50V AC up to 240V AC.
- Different Speed option on board and via remote buttons
- Many modes available. Each one has sub modes in it. like Manual, Auto , Modes, Beacon mode, Flashing mode
| Brand | Traffic Light Controller |
|---|---|
| Color | Green |
| Model Name | 3 Channel Traffic Light Signal Controller |
| Battery Type | 12V Lithium |
| Manufacturer | ElectronicNuts |
| Model Number | 41a559c0-fc00-42f1-8cc8-56c46f5ecbd6 |
| Maximum Range | 150 Meters |
| Button Quantity | 4 |
| Controller Type | Button Control |
| Mfr Part Number | RemoteGr3Channel |
| Compatible Devices | Comptible to AC powered Devices |
| Additional Features | Universal |
| Number of Batteries | 1 12V batteries required. (included) |
| Connectivity Technology | Radio Frequency |
| Maximum Number of Supported Devices | 1 |
